Assembly systems

STACBOND has a wide range of construction systems for composite panels that have successfully passed the most demanding quality tests, thus achieving the main international certifications that guarantee their suitability for the execution of architectural facades.

This variety allows for greater adaptability to the specific needs of each project, thus optimising construction solutions, finishes and final cost.

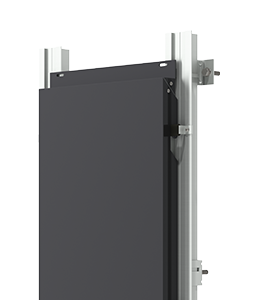

STB-T-CH

HANGING SYSTEM

Assembly hanging system with hidden fixings especially suitable for facades with many openings and vertical modulation.

See more

STB-T-CH-PRO®

HANGER SYSTEM

Assembly hanging system with hidden fixings especially suitable for modulation vertical and horizontal.

See more

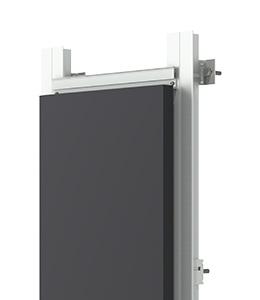

STB-T-SZ

MALE-FEMALE SYSTEM

Male-female assembly system with hidden fixings especially indicated for facades with few holes and horizontal modulations.

See more

STB-T-SZ-PRO®

MALE-FEMALE SYSTEM

Male-female assembly system with hidden fixings especially indicated for vertical and horizontal modulations.

See more

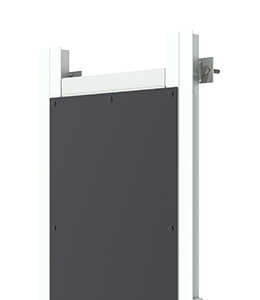

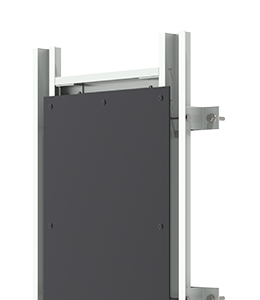

STB-T-REM

RIVETED SYSTEM

Very versatile assembly system with visible fixings wich adapts perfectly to any architectural typology.

See more

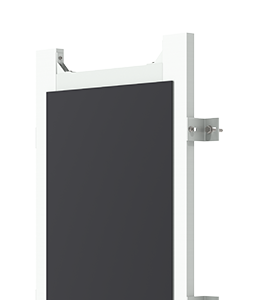

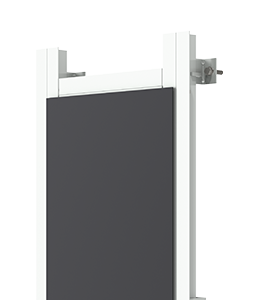

STB-T-PEG

GLUED SYSTEM

Very versatile assembly system with hidden fixings wich adapts perfectly to any architectural typology.

See more

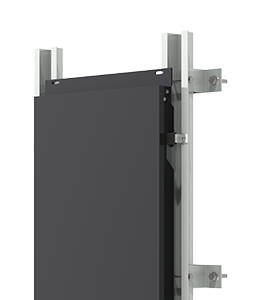

STB-CH

HANGING SYSTEM

Assembly hanging system with hidden fixings especially suitable for facades with many openings and vertical modulation.

See more

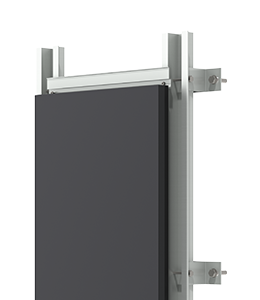

STB-SZ

MALE-FEMALE SYSTEM

Male-female assembly system with hidden fixings especially indicated for facades with few holes and horizontal modulations.

See more

Certifications

The production of the STACBOND composite panel follows a process controlled by means of rigorous internal tests and quality controls, in our laboratories, and external audits of the most prestigious construction institutes in the different countries where we are certified, which means that we offer our clients the most demanding national and international certifications. The granting of these certificates follows the European guideline according to EAD GUIDE 090062-00-0404 for ventilated facades and allows us to conclude that our construction systems comply with the national regulations of each country. The composite panel assembly systems STACBOND STB-T-CH, STB-T-SZ, STB-T-REM, STB-CH, STB-SZ and STB-REM have the European technical evaluation document ETE/ETA 15-0655 and CE marking.

E.U.

INTERNATIONAL

U.S.A.

SPAIN

FRANCIE

U.K.

POLAND

ROMANIA

MEXICO

INTERNATIONAL

INTERNATIONAL

GERMANY

Ventilated facade

The ventilated facade is an external enclosure system that allows the STACBOND® composite panel to be placed separately from the thermal insulation by means of a load-bearing structure. This separation distance allows a current of air to pass between the panel and the façade, thus achieving optimum thermal and acoustic insulation, as well as effective protection against atmospheric agents. The panel is fixed to the facade by means of constructive elements designed and manufactured by STAC® for an easy, fast and efficient installation of the system. The main advantage of ventilated facades is energy saving, which is possible thanks to the chamber between the brick and the composite panel, which causes the thermal transmittance to be reduced and energy to be saved inside the building.

➞   Outdoor environment
   Airflow
   Indoor environment

Advantages in habitability

Thermal insulator

Low maintenance cost

Moisture reduction

Energy saving

Revaluation of property

Advantages in construction

Quick installation

Acoustic insulator

Easy to replace

Concealment of conductions

Direct application

STACBOND has a wide range of construction systems for composite panels that have successfully passed the most demanding quality tests, thus achieving the main international certifications that guarantee their suitability for the execution of architectural facades. This variety allows for greater adaptability to the specific needs of each project, thus optimising construction solutions, finishes and final cost.
